The Latest Generation Master 20 HP Rotary Screw Air Compressor Complete System
The Complete System Includes:
- (1x) 20 HP Rotary Screw Air Compressor
- (1x) 90 CFM Refrigerated Air Dryer (High Temp Rated with Automatic Electronic Moisture Drain Valve)
- (1x) Vertical Standing 80 Gallon Compressed Air Receiver Tank (Rated @ 175 PSI)
- (Set of 3x) C + T + A High Precision Air Filters
- (Set of 3x) Centrifugal Automatic Moisture Drain Valves

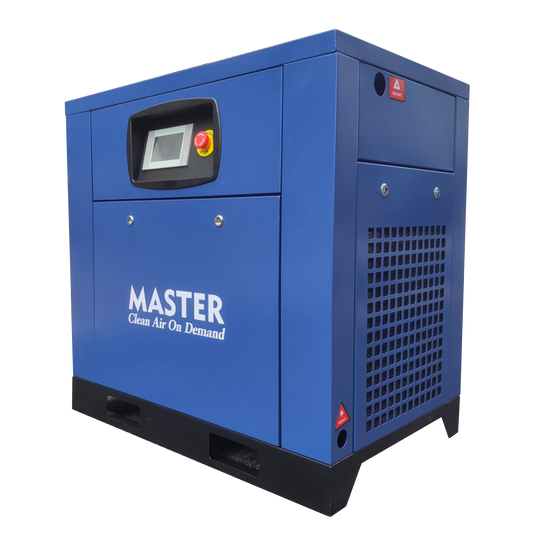

20 HP Rotary Screw Air Compressor
Model |
MST-15VFD |
kW/HP |
15 kW / 20 HP |
CFM & PSI |
93 CFM @ 102 PSI Heavy-duty Industrial Air Delivery |
Adjustable Pressure |
Pressure can be adjusted from 50 PSI to 145 PSI |
Pressure Rating |
145 PSI |
Outlet Size |
¾ Inch |
Dimensions |
43 x 30 x 39 Inches (L*W*H) |
Weight |
519 lbs |
Duty Cycle |
Continuous Duty (100% Duty Cycle) |
Oil Type |
ISO46 Compressor Oil (Synthetic and Non-Detergent) |
- Full-colour LED Touchscreen Programmable Logic Controller with Variable Frequency Drive which features Soft Start (Preprogrammed Plug & Play System)
- Heavy Duty Inbuilt Thermostatically Controlled Cooling Fan
- Heavy Duty Air Filter, Oil Filter and Air/Oil Separator
- Direct Drive results in low maintenance and high efficiency by eliminating any power transmission losses due to belts and pulleys
- TEFC IE4 Permanent Magnet Heavy-duty Induction Motor
- Variable Frequency Drive to adjust the airflow on demand
- Variable frequency drive not available in the 575/600V option
90 CFM Refrigerated Air Dryer
Model |
MSTD20 |
Operating Pressure |
≤ 145 PSI |
Voltage / Phase / Hertz |
208-240V / 1 PH / 60 HZ |
Air Capacity |
≤ 93 CFM |
Weight |
123 lbs |
Dimensions |
30 x 18 x 30 Inches (L*W*H) |
Inlet Temperature |
≤ 80°C |
Pressure Dew Point |
2-10°C |
Refrigerant |
R134A |
Duty Cycle |
Continuous Duty (100% Duty Cycle) |
- High Temp Rated with Automatic Electronic Moisture Drain Valve
Complete System
- Preprogrammed Plug & Play System; Comes ready to use, connect your electrical, connect the equipment, and turn it on!
- Inbuilt Programmable Logic Controller
- TEFC IE4 Permanent Magnet Heavy-duty Induction Motor
- Energy Efficient Design
- Variable frequency drive not available in the 575/600V option
- Vertical Space-Saving Air Tank Design
- Low Maintenance, No Supervision needed due to smart design highly energy-efficient VFD saves a lot of electricity due to pre-programmed air on-demand smart control system
OPTIONS/ADD-ONS AVAILABLE
For more details, call or text: +1 (647) 363-5872
